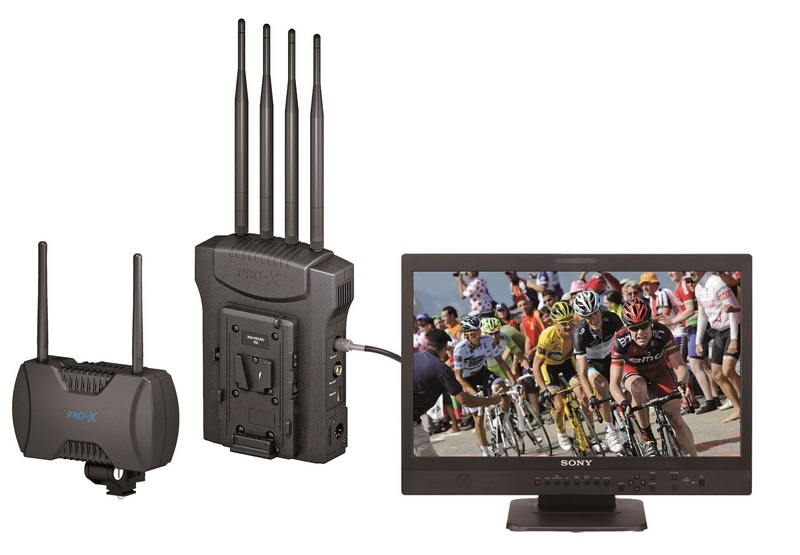

XW-HDU01

XW-HDU01

Designed from the ground up for wireless transmitting HD images from any standard ENG broadcast camera to field monitors, is ideal for live real-time viewing in professional quality, with a latency of less than 1 millisecond. The
director, producer and even film crew can see exactly what the camera is shooting in real-time. The transmission is uncompressed for the highest quality and encrypted for safety.

  • Images transmitted in real-time with latency less than 1 millisecond
  • Fully uncompressed, high definition images with embedded sound
  • HDMI input/output, automatically detects HD-SDI and SD-SDI video
Input voltage: DC 12-17V
Power consumption: 20W (max.)
Transmission Distance: 50m in open space or 30m through walls
Transmission Latency: ≤1ms
Transmitter: 1 HDMI input, 1 HD/SDI input, 1 HD/SDI Loop through output
Receiver: 1 HDMI output, 2 HD/SDI output
Supported Format: HD SDI:1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 1080/25PsF, 720/59.94p, 720/50p
SDSDI: 525/59.94i (NTSC Equivalent), 625/50i(PAL Equivalent)
HDMI: HD 1080I, HD720P and NTSC/PAL
Size: 207mm x 156mm x 82mm
Weight: 1.8kg

>>> Comparison Table <<<

COBRA-S / COBRA-P / COBRA-EX

COBRA Photo

Input voltage: DC 7-17V
Power consumption: 10W Max
Brightness: 1500 lux/1m
Beam Angle: 55°
Color Temperature: 3200K/5600K
Weight: 0.77 lbs
  • Wide beam angle meets the requirements of HD camera shooting
  • A dimmer control allows illumination from 10% to 100% to meet the different scene requirements
  • Light angle adjustable through connecting rod
  • Wide range voltage design, can be powered by DV battery or by the camera
  • S/P/EX for Sony or Panasonic batteries

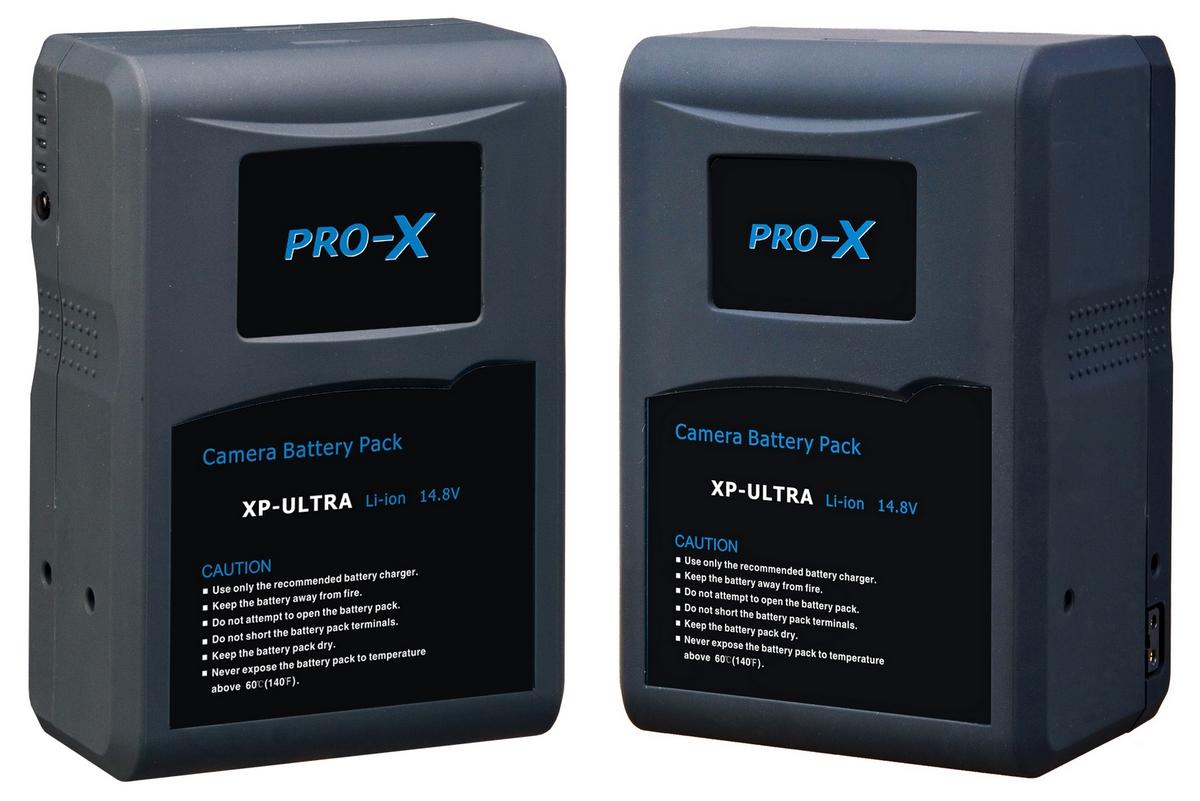

XP-ULTRA

XP-ULTRA Photo

Capacity: 180Wh
Voltage: 14.8v
Weight: 3 lbs
Size: 3.8" x 5.87" x 2.75"
Nominal Runtime (85W): 2.1 hours
  • All-purpose power supply that features high load discharge of 12 Amps
  • Meets the power requirement of ARRI ALEXA
  • 4 Stage LED Power Gauge
  • Integrated P-Tap on the side of the battery allows you to power any 12vdc device from this port
  • Internal protection circuits monitor cell balance, temperature, over charge and over discharge to insure safe and proper operation
  • Shock absorbing non-slip shell to protect the battery pack

XP-BM4

XP-BM4 Photo

XP-BM4 offers the operator a steady three-point support for the camera to shoot longer and improve the image stabilization

  • Working with SONY VCT-14 or VCT-U14, XP-BM4 can put most DV/HDV on the tripod
  • Connecting rod length adjustable to fit various needs
  • 15mm rail and rotatable arm for mounting wireless receivers, hard drives and other accessories
  • Light weight and foldable design, easy for carry

XP-L100V

XP-L100V Photo

Capacity: 98Wh
Voltage: 14.8v
Runtime: 3.8 hours (26W Load)
Weight: 1.9lbs
Size: 148 x 90 x 61mm
  • Optional GP-S1 allows mounting another V-lock battery of any brand and any capacity to extend the running time
  • Accessory shoe in the front side for attaching accessories like wireless receiver etc
  • A standard USB port in left side for outdoor use like charging mobile phone
  • A power Tap socket in right side for powering light or other 12V accessories
  • 4 Stage LED Power Gauge display, offers an accurate reading of capacity in 25% increments

XD-20080NH

XD-20080NH

Power consumption: 30W
Brightness: 4500 lux/1m (equivalent to 200W halogen bulb)
Beam Angle: 55°
Color Temperature: 3200K/5600K
Battery Rated Capacity: 50Wh
Standard Lighting Time: 80min
Weight: 3.8 lbs
  • Unique design combines LED light with the Ni-MH battery pack to realize the creative Hi-Power LED lighting kit
  • Handheld or mounted on camera
  • Light weight and adjustable angle
  • A dimmer control allows illumination from 10% to 100% to meet the different scene requirements
  • Powerful battery pack for shooting and lighting simultaneously

XD-S518B / XD-S168B

XD-S518B

Input voltage: DC 12V
Power consumption: 16W
Brightness: 700 lux/1m
Beam Angle: 80°
Color Temperature: 3200K/5600K
Weight: 1.1 lbs
  • LED matrix for soft lighting
  • Low power consumption and long lifetime
  • A dimmer control allows illumination from 10% to 100% to meet the different scene requirements
  • Wide beam angle meets the requirements of HD camera shooting
  • Light angle adjustable through connecting rod

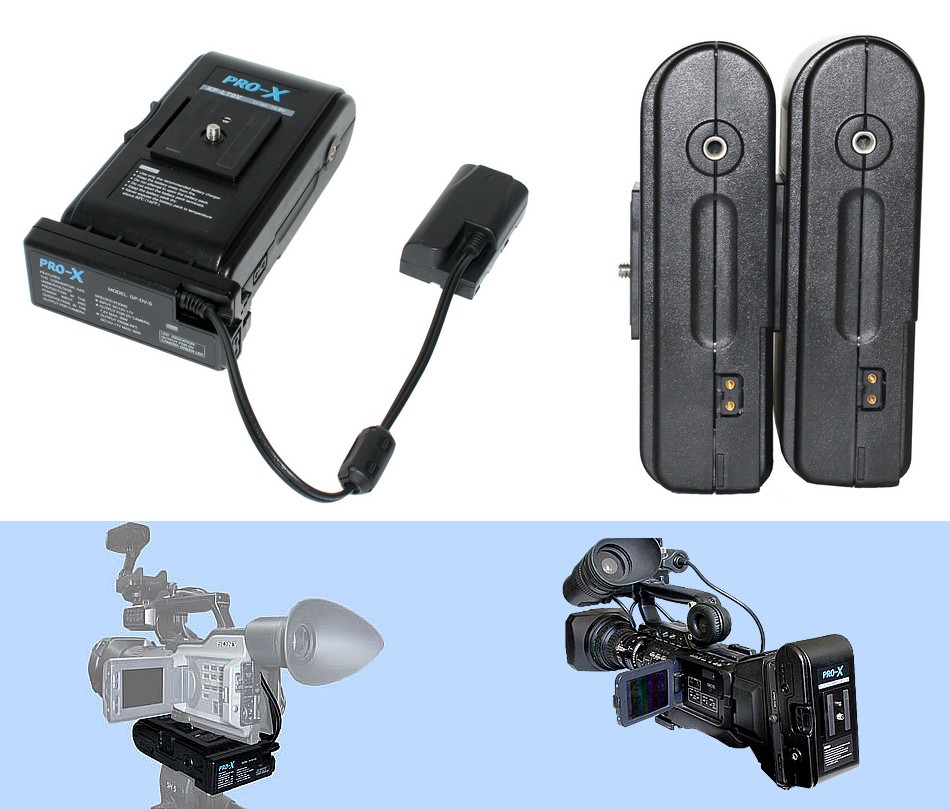

XP-L70V

XP-L70V Photo

Capacity: 70Wh
Voltage: 14.8v
Weight: 0.64Kg
Size: 159 x 85 x 50mm
  • Work with GP-DV-S/SE/P/C or GP-EX-S to supply power for 7.2V or 14.4V DV camera to extend runtime
  • Can also be used and charged as normal brick battery
  • The quick release plate can be used to install wireless receiver, hard drive or other equipments, can also be used to connect 2 batteries physically (no circuit connect) so one battery for camera and another for other equipments
  • Power Tap socket built in
  • Both sides have 1/4” 20 mounting holes reserved for installing other equipments
  • Capacity display on camera's viewfinder, vital parameters of battery can also be displayed on Pro-X digital chargers
  • 4 Stage LED Power Gauge display, offers an accurate reading of capacity in 25% increments
