Brick Batteries

XP-ULTRA

XP-ULTRA Photo

Capacity: 180Wh
Voltage: 14.8v
Weight: 3 lbs
Size: 3.8" x 5.87" x 2.75"
Nominal Runtime (85W): 2.1 hours
  • All-purpose power supply that features high load discharge of 12 Amps
  • Meets the power requirement of ARRI ALEXA
  • 4 Stage LED Power Gauge
  • Integrated P-Tap on the side of the battery allows you to power any 12vdc device from this port
  • Internal protection circuits monitor cell balance, temperature, over charge and over discharge to insure safe and proper operation
  • Shock absorbing non-slip shell to protect the battery pack

XP-L100V

XP-L100V Photo

Capacity: 98Wh
Voltage: 14.8v
Runtime: 3.8 hours (26W Load)
Weight: 1.9lbs
Size: 148 x 90 x 61mm
  • Optional GP-S1 allows mounting another V-lock battery of any brand and any capacity to extend the running time
  • Accessory shoe in the front side for attaching accessories like wireless receiver etc
  • A standard USB port in left side for outdoor use like charging mobile phone
  • A power Tap socket in right side for powering light or other 12V accessories
  • 4 Stage LED Power Gauge display, offers an accurate reading of capacity in 25% increments

XP-POWER

XP-POWER Photo

Capacity: 90Wh
Voltage: 14.8v
Weight: 2 lbs
Size: 3.8" x 5.87" x 2"
  • Features high load discharge of 10 Amps
  • Highest capacity Lithium Ion battery pack that can be legally transported without restrictions under IATA, ICAO, and UN regulations
  • 4 Stage LED Power Gauge
  • Integrated P-Tap on the side of the battery allows you to power any 12vdc device from this port
  • Internal protection circuits monitor cell balance, temperature, over charge and over discharge to insure safe and proper operation
  • Shock absorbing non-slip shell to protect the battery pack

RED Series - XP-Lxx RED / XP-POWER RED

RED battery Photo

Capacity: 95Wh / 190Wh / 90Wh(XP-POWER)
Voltage: 14.8v
Weight: 2 lbs / 3.1 lbs / 2 lbs(XP-POWER)
Size: 3.8" x 5.87" x 2" (95Wh / XP-POWER)
3.8" x 5.87" x 2.75" (190Wh)
  • Exclusive feature in communicating with RED ONE™ Camera for % Data
  • 4 Stage LED Power Gauge
  • Integrated P-Tap on the side of the battery allows you to power any 12vdc device from this port
  • Internal protection circuits monitor cell balance, temperature, over charge and over discharge to insure safe and proper operation
  • XP-POWER RED can draw 10 Amps current

XP-L70V

XP-L70V Photo

Capacity: 70Wh
Voltage: 14.8v
Weight: 0.64Kg
Size: 159 x 85 x 50mm
  • Work with GP-DV-S/SE/P/C or GP-EX-S to supply power for 7.2V or 14.4V DV camera to extend runtime
  • Can also be used and charged as normal brick battery
  • The quick release plate can be used to install wireless receiver, hard drive or other equipments, can also be used to connect 2 batteries physically (no circuit connect) so one battery for camera and another for other equipments
  • Power Tap socket built in
  • Both sides have 1/4” 20 mounting holes reserved for installing other equipments
  • 4 Stage LED Power Gauge display, offers an accurate reading of capacity in 25% increments

IntelliCom Series - IntelliCom xxS/A

IntelliCom Photo

Capacity: 95Wh / 130Wh / 190Wh
Voltage: 14.8v
Weight: 0.9Kg / 1.1Kg / 1.9Kg
Size: 148 x 98 x 52mm (95Wh / 130Wh)
148 x 98 x 75mm (190Wh)
  • Gold Mount / V Mount compatible
  • Moli Li-ion Cells
  • Shock absorbing non-slip shell to protect the battery pack

IntelliCom RunTime LCD

  • The IntelliCom Series Battery LCD displays Normal RunTime based on a 30w draw when the battery is not in use.
  • When connected to a camera, the Intellicom Battery calculateds the Remaining RunTime based on the actual draw.
  • When connected to a charger, the IntelliCom Battery calculates the Remaining ChargeTime until completion.

The back-lighted LCD can be activated by pressing the button for two seconds

Built in Microprocessor

The Microprocessor built in stores the battery's Model, Serial Number, Voltage, Temperature, Current, Chemistry Charge Cycles and Date of Manufacturing, which can be read from the LCD panel of Pro-X Digital Chargers. The Microprocessor adjusts to insure the optimal charging sequence.

Viewfinder Capacity Display

The Intellicom Series can communicate with the most current cameras to display your remaining battery capacity in your camera's EVF.

Available with compatible cameras

General Series - XP-LxxS/A

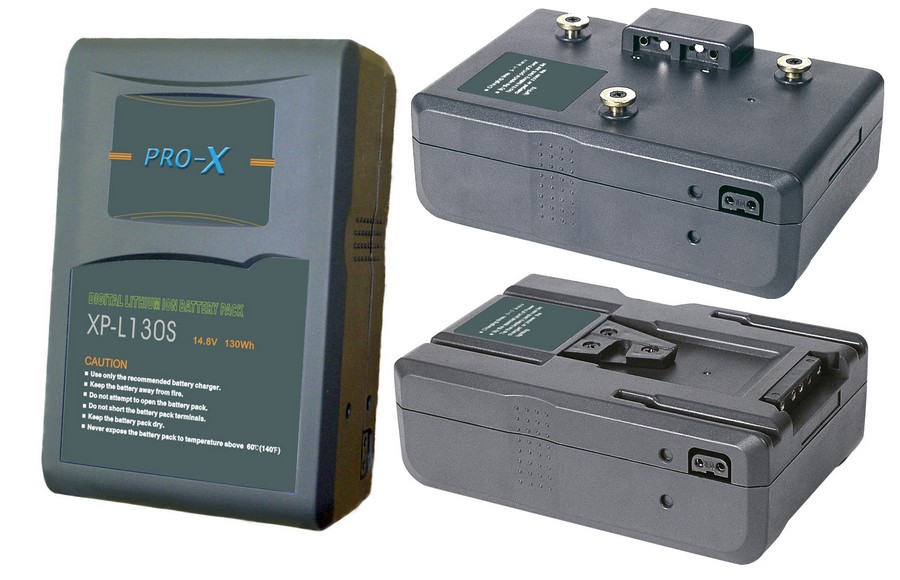

General Serie Photo

Capacity: 95Wh / 130Wh / 190Wh
Voltage: 14.8v
Weight: 0.53Kg / 0.9Kg / 1.1Kg / 1.9Kg
Size: 148 x 98 x 33mm (60Wh)
148 x 98 x 52mm (95Wh / 130Wh)
148 x 98 x 75mm (190Wh)
  • Gold Mount / V Mount compatible
  • Moli Li-ion Cells
  • Shock absorbing non-slip shell to protect the battery pack

Economic Series - GP-LxxB/AB

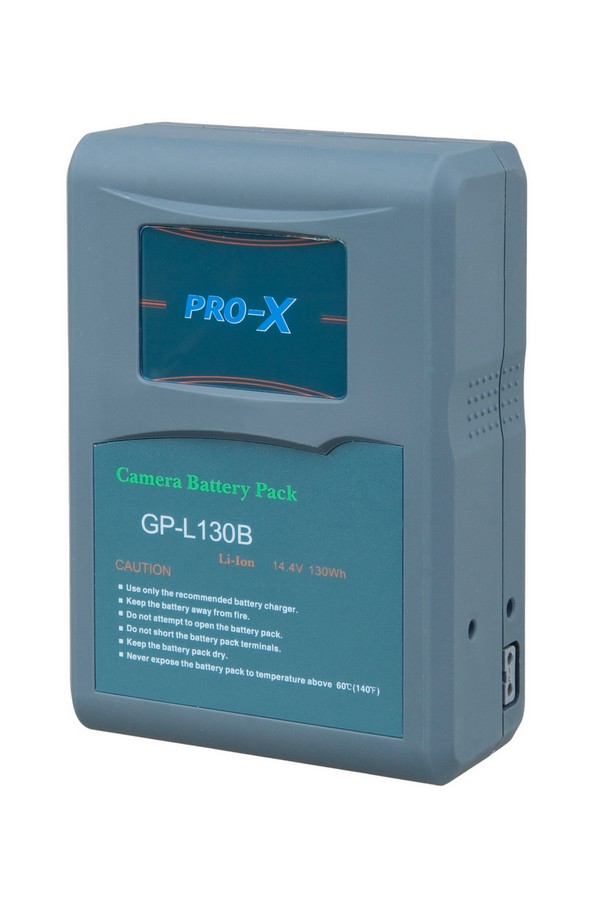

Economic Series Photo

Capacity: 95Wh / 130Wh / 190Wh
Voltage: 14.4v
Weight: 0.9Kg / 1.1Kg / 1.9Kg
Size: 148 x 98 x 52mm (95Wh / 130Wh)
148 x 98 x 75mm (190Wh)
  • Gold Mount / V Mount compatible
  • LG Li-ion Cells
  • Shock absorbing non-slip shell to protect the battery pack

Economic Series is nearly the same with General Series except that they use cheaper LG Li-ion cells.
